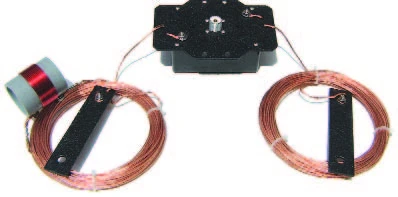

MFJ-2014, 75/40 METER, DUAL-BAND OCFD DIPOLE
Power-Lite™ for 60 and 30 Meters, handles maximum legal limit 1500 Watts PEP CW/SSB. Replaces your old 75-Meter dipole and adds 40 Meter coverage with up to 9-dBi of powerhouse gain! Rugged 122 ft. long. Foreign broadcast gone and 7-MHz has never been better!
Engineered from the ground up, innovative new antennas by K1BQT break traditional OCFD design barriers to deliver wider bandwidth, lower SWR, solid gain, and full-frequency agility without a tuner!
How good are they? W4ILV bought an MFJ-2012 and wrote EHAM, ". . . the best wire antenna I've ever used!" We think you'll agree, and here's why:
Highest Efficiency: Full-sized radiator with MatchmakerTM feed block that tests over 98-percent efficient. All your power gets radiated!
Best Match: NEC-modeled element delivers the same feed-point impedance on every band. Innovative new transformer designs yield exact ratio needed for a great match.
Super Balun: OCFDs need good baluns to block feedline radiation. Built-in bifilar-wound Guanella current-choke has over 30 dB of common-mode rejection on all bands. Kills pattern irregularities, RFI, noise.
Real Gain: Delivers a 6-dBi ground-rein-forced dipole pattern on the fundamental and a 9-dBi full-wave cloverleaf on the second harmonic. You get an amazing (up to) 11.5 dBi peak gain on higher bands.
Height Compensation: Element feedpoints are compensated for typical mounting height, so you always get lowest possible SWR on all bands!
Frequency Compensation: Normally, a OCFD cut for 3.85 MHz resonates on 7.7 MHz. Ourunique OCFD design resonates mid-band on both 75/40!
Built to Last: UV-resistant marine-ABS feedblocks, stainless hardware, and Teflon® SO-239 connector ensure maximum protection from the environment.
Easy-to-Install: Installs in flat-top or inverted-V set-up, feed-block has attachment points for tower or tree support. Suggested height is 35-70 feet.
Low Cost: Outperforms multi-band vertical antennas by a wide margin for an unbelievable fraction of the cost!
Product Manuals
Download Product ManualOriginal: $139.95
-70%$139.95
$41.98
Description
Power-Lite™ for 60 and 30 Meters, handles maximum legal limit 1500 Watts PEP CW/SSB. Replaces your old 75-Meter dipole and adds 40 Meter coverage with up to 9-dBi of powerhouse gain! Rugged 122 ft. long. Foreign broadcast gone and 7-MHz has never been better!
Engineered from the ground up, innovative new antennas by K1BQT break traditional OCFD design barriers to deliver wider bandwidth, lower SWR, solid gain, and full-frequency agility without a tuner!
How good are they? W4ILV bought an MFJ-2012 and wrote EHAM, ". . . the best wire antenna I've ever used!" We think you'll agree, and here's why:
Highest Efficiency: Full-sized radiator with MatchmakerTM feed block that tests over 98-percent efficient. All your power gets radiated!
Best Match: NEC-modeled element delivers the same feed-point impedance on every band. Innovative new transformer designs yield exact ratio needed for a great match.
Super Balun: OCFDs need good baluns to block feedline radiation. Built-in bifilar-wound Guanella current-choke has over 30 dB of common-mode rejection on all bands. Kills pattern irregularities, RFI, noise.
Real Gain: Delivers a 6-dBi ground-rein-forced dipole pattern on the fundamental and a 9-dBi full-wave cloverleaf on the second harmonic. You get an amazing (up to) 11.5 dBi peak gain on higher bands.
Height Compensation: Element feedpoints are compensated for typical mounting height, so you always get lowest possible SWR on all bands!
Frequency Compensation: Normally, a OCFD cut for 3.85 MHz resonates on 7.7 MHz. Ourunique OCFD design resonates mid-band on both 75/40!
Built to Last: UV-resistant marine-ABS feedblocks, stainless hardware, and Teflon® SO-239 connector ensure maximum protection from the environment.
Easy-to-Install: Installs in flat-top or inverted-V set-up, feed-block has attachment points for tower or tree support. Suggested height is 35-70 feet.
Low Cost: Outperforms multi-band vertical antennas by a wide margin for an unbelievable fraction of the cost!
